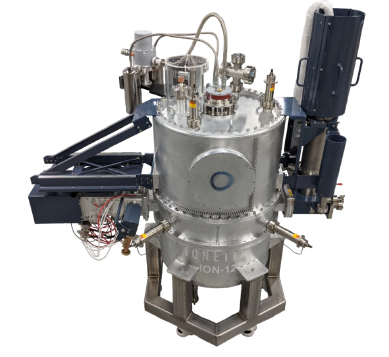

The First Superconducting Radio-Isotope Generator
The Ionetix ION-12SC System, based on proprietary technology, is the world’s first ultra-compact superconducting Radio-isotope Generator System. The fully automated 12 MeV system accelerates protons to produce positron-emitting isotopes including F-18 and Ammonia NH3.
- Ultra-compact system requiring only a 4m x 4m x 3.2 m room.
- Modular self-shield assembled in finished room.
- No additional room shielding required.
- “Fast slide” ion and target source replacement.
- Streamlined operation with (1) operator.
- Low power consumption of 6 KW
- Fast installation time.
Imagine a complete radio-pharmacy in 55 m² and a complete Molecular Imaging Center in 220 m²

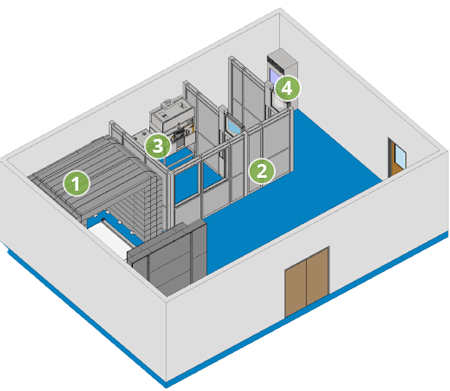

A True Modular Solution
We provide a complete, modular cGMP PET Radio-pharmacy solution by designing, pre-building, and installing certified modular units within your facility, greatly simplifying implementation. The modular units include:
Fully modular and certified Radio-Isotope Generator Shield.
Installed in the finished space, eliminating the need for additional room shielding.
Provides complete gamma and neutron shielding with Concrete and lead boronated polyethylene bricks, including a quick access sliding door.
